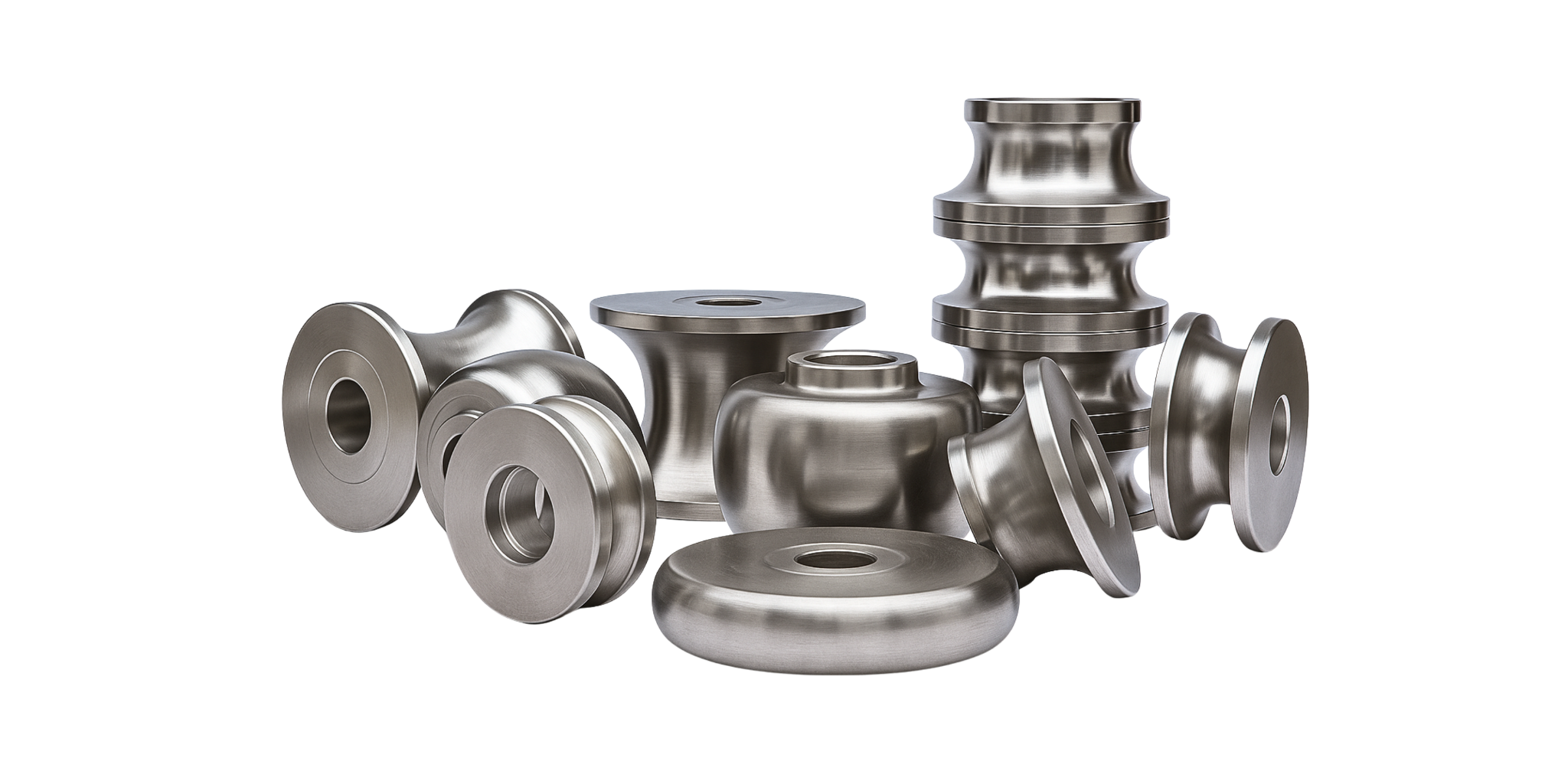

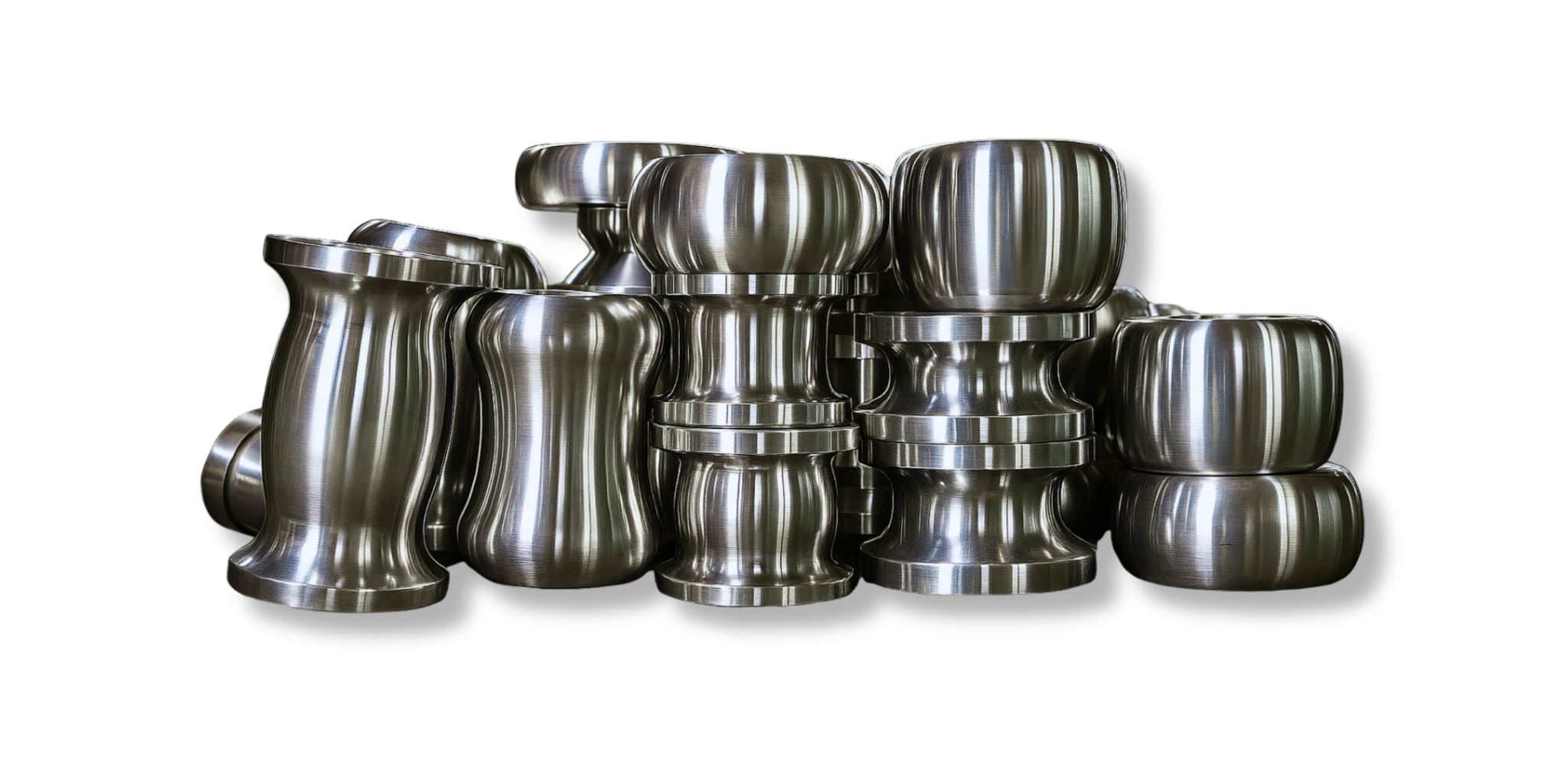

Tube Mill Rolls are critical forming components used in tube and pipe mills to progressively shape flat metal strip into round, square, rectangular, and profile tubes. These rolls are installed in different stages such as forming, welding, and sizing, directly affecting tube precision, surface finish, and weld quality.
Manufactured from high-grade tool steels such as D2, D3, EN31, H13, and alloy steels, and heat-treated for strength and wear resistance, these rolls are designed to withstand high pressure, friction, and continuous production conditions.
58–62
HRC Hardness
D2/D3
Tool Steel Grade
Custom
Sizes Available
| Parameter | Details | Notes |
|---|---|---|
| Material Grade | D2, D3, EN31, H13, Alloy Steel | Selected based on wear resistance and load |
| Hardness | 58–62 HRC | Can go up to 65 HRC for heavy-duty use |
| Heat Treatment | Hardened and tempered | Improves strength and durability |
| Surface Finish | Ground or polished finish | Reduces friction and improves tube finish |
| Surface Roughness | Ra 0.4 – 0.8 µm | Ensures smooth strip movement |
| Size | Custom sizes available | As per mill requirement |
| Tolerance | Up to ±0.05 mm | Ensures dimensional precision |
| Application | Tube and pipe forming | Strip forming into tubular shape |
| Compatible Mills | ERW, SS and pipe mills | Suitable for high-speed production |
Ensures accurate tube forming with consistent dimensions across all production runs.
Provides high wear resistance for long production runs with minimal roll replacement.
Maintains smooth strip flow and proper roll alignment throughout the forming process.
Suitable for MS, SS, and high-strength materials in diverse tube mill applications.
Supports high-speed continuous production without compromising forming precision.
Improves weld quality through proper edge alignment before the welding stage.
Share your drawings, sample, or specs and we will manufacture components that fit your machine and perform reliably in production.
